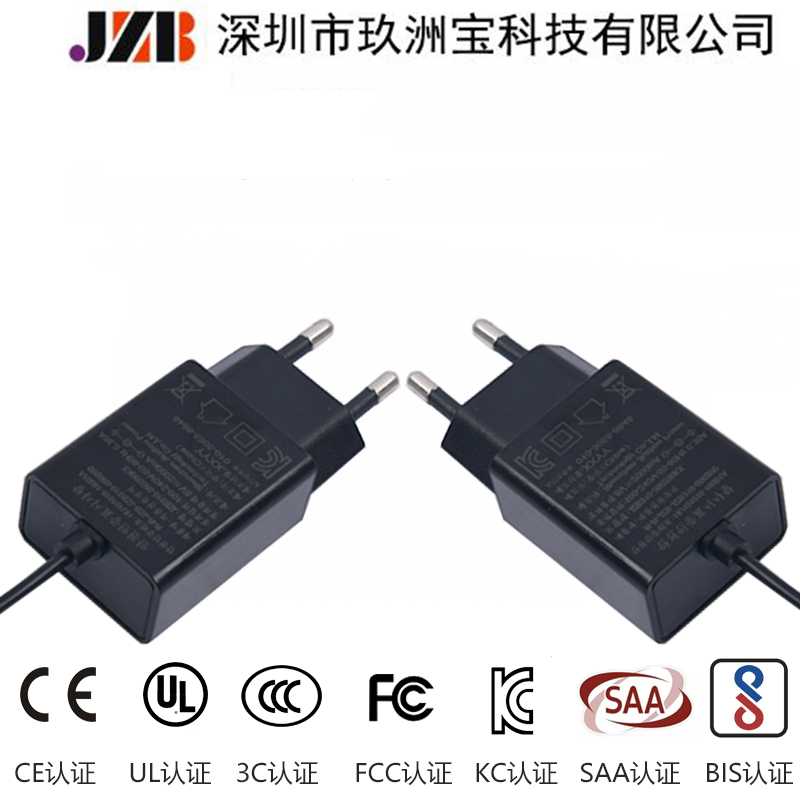

5v2a電源適配器帶線韓規(guī)KC認證充電器廠家：深圳市玖洲寶科技有限公司 應用于:手機數碼3C配件,美容儀充電器等領域

產品尺寸圖

輸入特性/INPUT CHARACTERISTICS:

2.1輸入電壓/Input Voltage:

額定電壓/Rated Voltage: 100-240 Vac

調整范圍/Variation Range: 90-264 Vac

2.2輸入頻率/Input Frequency:

額定頻率/ Rated Frequency: 50-60 Hz.

調整頻率/Variation Frequency: 47-63 Hz

2.3輸入電流/Input Current:

當輸入交流電壓為額定值的下限電壓負載滿載時,最大輸入交流電流 0.35 A.

0.35 Amps max At any input voltage and rated, DC output rated load.

2.4浪涌電流/Inrush Current:

沖擊電流峰值在額定電壓輸入，冷啟動（25℃）時，不大于 30A ;且在任何負載和輸入條件下，不導致永久性損壞或危險.

Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.

2.5 AC漏電流/Ac Leakage Current:

當輸入電壓240Vac時,最大漏電流為0.25mA./ 0.25mA Max.At240Vac input.

2.6  Stand-by power consumption ≤ 0.1 Watts.

待機功耗≤ 0.1 W.
